Untitled Detail Drawing
Space Designers' Syndicate Collection \
Space Designers' Syndicate Building Projects \
Residential complex in Raviwar peth \
Untitled Detail Drawing
Residential complex in Raviwar peth, architectural drawings (visual works), 1989-01-23, Space Designers' Syndicate Collection, Pune Architectural History Archive, https://paha.site/ark:/71826/media_1922
Metadata
| Identifier | sds_j(193)_dr(4)_32 |
| Title | Untitled Detail Drawing |

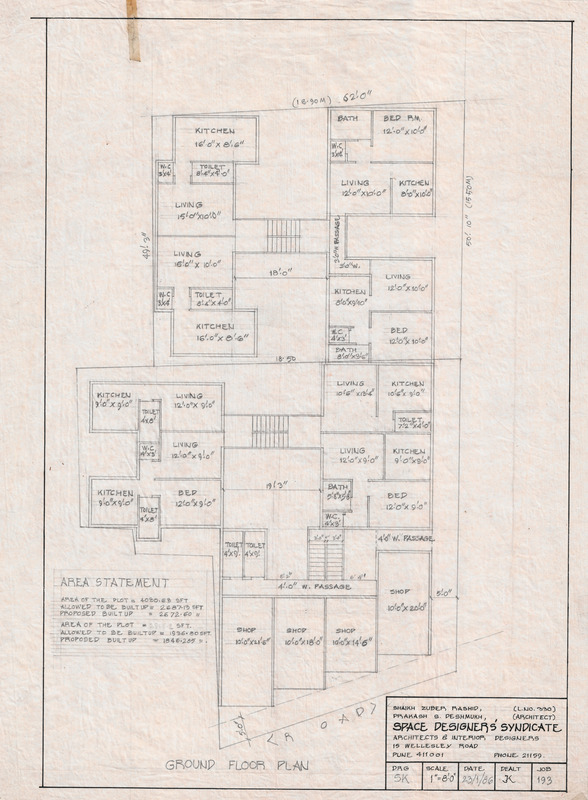

| Alternative Title | Ground Floor Plan |
| Type and Architectural elements |
architectural drawings (visual works) stairs (series of steps) kitchens Building services interior architecture (object genre) |
| Description |
floor plans (orthographic projections) Greyscale ; Scale - 1"=8'.0" Stakeholders - Space Designer's Syndicate (architects) ; K (architect) |
| Date Created | 1989-01-23 |
| Sub-type | detail drawings (drawings) |
| Format | 510 x 380 mm |
| Technique and Material | tracing paper |
| Language | English |
| Rights | CC BY-NC-SA |
| Rights Holder | PAHA |
| Contributor |
Digitized by - Santosh Kule (Aryan Imaging) Metadata by - Janhvi Sharma |
| Date Digitized | 2023-06-10 |
| Publisher | PAHA |
